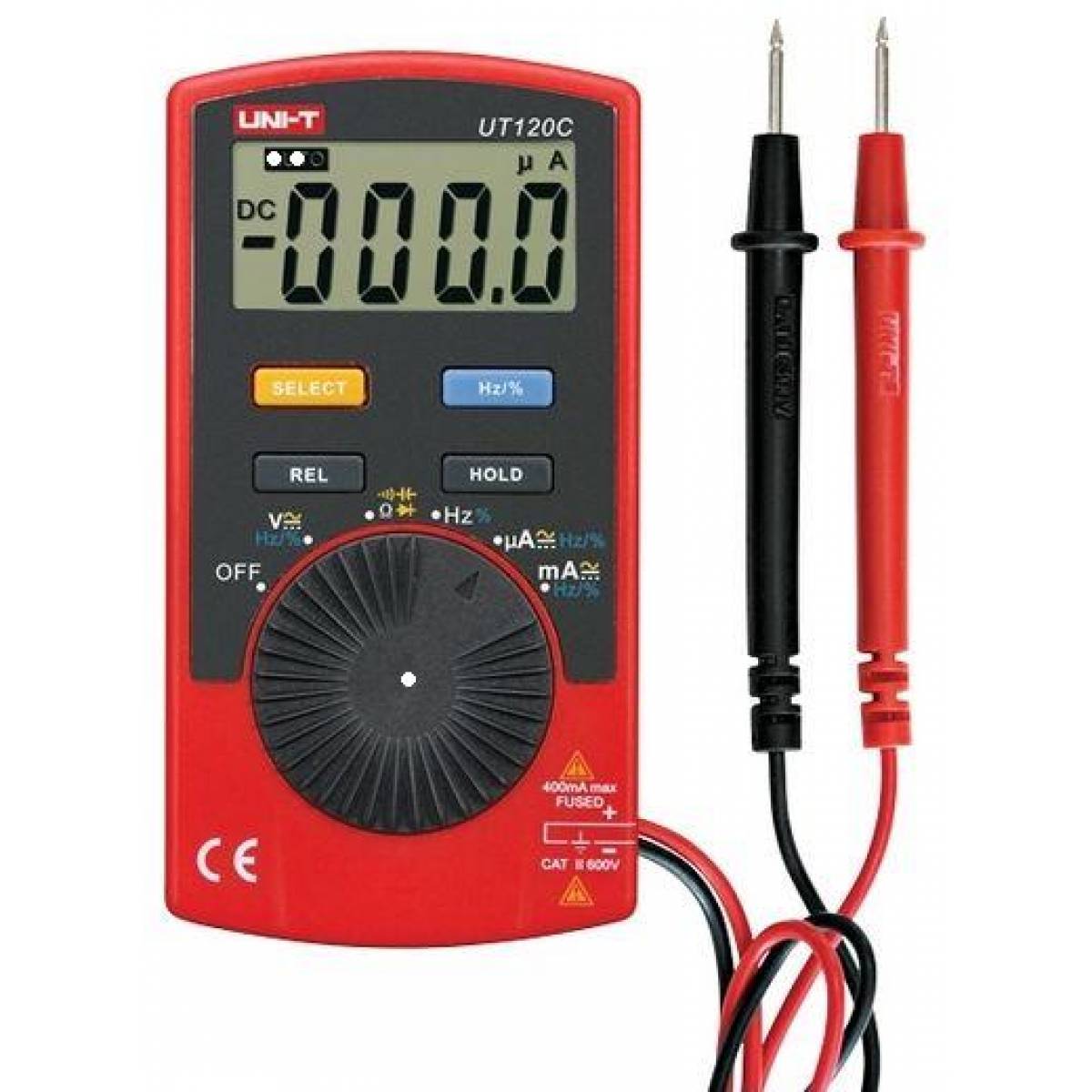

UNI-T Pocket Size Digital Multimeter UT120C

UT120C Pocket Size Digital Multimeter UT120 series multimeters are designed for DIYers and electronics engineers to troubleshoot electronics systems development and electronics circuits. It is a simple and portable multimeter for every electronics engineer. Applications: It can used in troubleshoot electronics systems development and electronics circuits. 1. Auto power off 2. Auto range 3. 4000 display count 4. Data hold and relative mode1 5. Capacitance measurement 6. AC/DC current measurement Specifications Range UT120C DC voltage (V) 600V ±(0.8%+1) AC voltage (V) 600V ±(1.2%+3) DC current (A) 400mA ±(1%+3) AC current (A) 400mA ±(1.5%+5) Resistance (Ω) 40MΩ ±(1%+2) Capacitance (F) 100μF ±(4%+3) Frequency (Hz) 100kHz ±(0.5%+3) Features Display count 4000 Auto range √ Duty cycle 0.1%~99.9% √ Diode √ Auto power off Around 30 minutes √ Continuity buzzer √ Low battery indication ≤2.4V √ Data hold √ Relative mode √ Input impedance for DCV Around 10MΩ √ General Characteristics Power 3V battery (CR2032) Display 43mm x 22mm Product color Red and grey Product net weight 76g Product size 110mm x 58.2mm x 10.8mm Standard accessories Battery, carrying case Standard individual packing Blister, English manual
