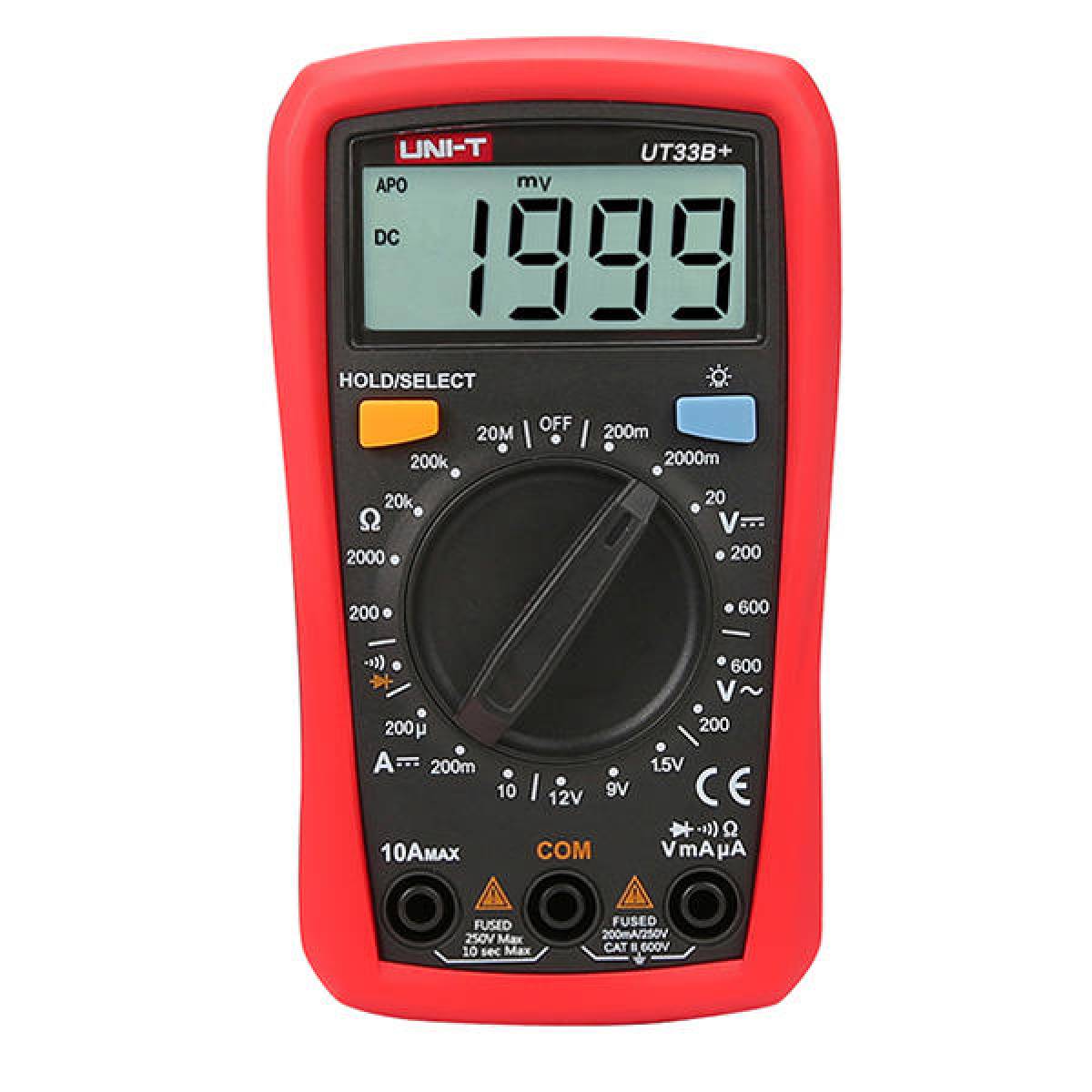

UNI-T Palm Size Digital Multimeter UT33B+

UT33B+ Palm Size Multimeter The new generation UT33+ series redefines the performance standards for entry-level digital multimeters. Our innovative industrial design ensures that these products can withstand 2 meters drop. The new LCD display layout provides a better user experience. This series ensures that users can work safely in CAT II 600V environment. Special features are, 2mF capacitance test (UT33A+); battery test (UT33B+); temperature measurement function (UT33C+); non-contact voltage (NCV) test (UT33D+). 1. Clear LCD display 2. Comfortable protective cover, with test lead hanging groove 3. 2 meters drop test, precision protection 4. Loud buzzer sound; Ergonomic design 5. Unique battery test feature: Displays’good’,’low’, and’bad’ statuses when testing 1.5V/9V/12V batteries Specifications Range UT33B+ DC voltage (V) 200mV/2V/20V/200V/600V ±(0.5%＋2) AC voltage (V) 200V/600V ±(1.2%+3) DC current (A) 200μA/200mA/10A ±(1%+2) Resistance (Ω) 200Ω/2kΩ/20kΩ /200kΩ/20MΩ ±(0.8%+2) Features Display count 2000 Auto power off/Auto backlight off √ Diode test/Continuity buzzer √ 2m drop test/ Test probe holder √ Range selection Manual Battery test 1.5V/9V/12V General Characteristics Power 1.5V battery (R03) x 2 Display 66mm x 51mm Product net weight Red and grey Product color 206g (batteries included) Product size 134mm x 77mm x 47mm Standard accessories Batteries, test leads Standard individual packing Gift box, English manual
