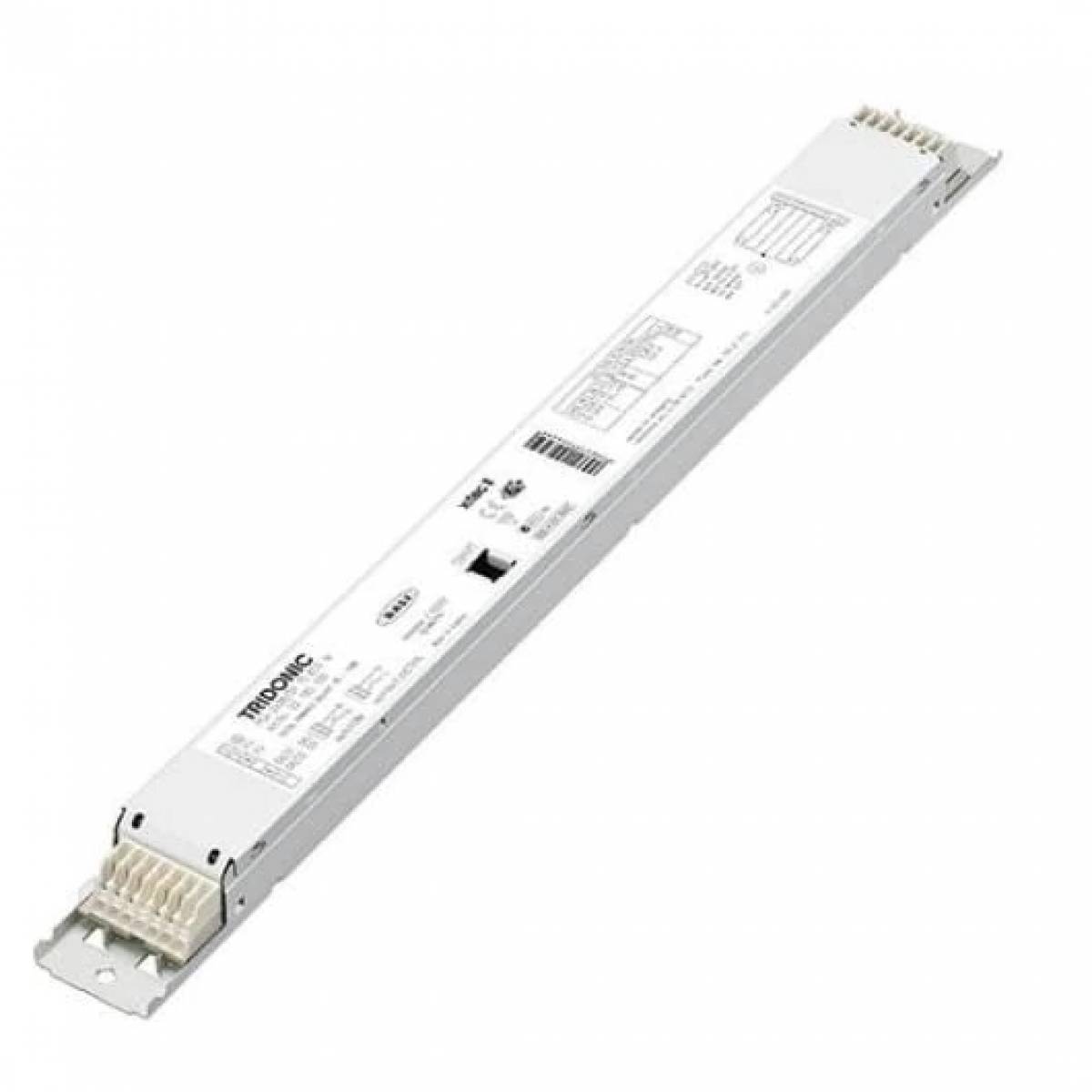

Tridonic PCS 2×28/54 T5 Digital Dimmer (MOQ: 10pcs)

Product description _ Processor-controlled ballast with yII inside _ Highest possible energy class CELMA EEI = A1 BAT 1 _ Noise-free precise control via DALI or DSI signal, switchDIM or corridor function _ Nominal life-time up to 100,000 h (at ta 50 °C with a failure rate ≤ 0.2 % per 1,000 h) _ Multi lamp management _ OEM-specific reserved memory areas _ 5-year guarantee Interfaces _ DALI _ DSI _ switchDIM (with memory function + selectable dimming rate) _ corridor function (3 preprogrammed profiles) _ Integrated SMART interface for function with SMART Sensor 5D 19f and corridor function plugs _ SMART interface for SMART plug cF – for setting the corridor function profiles _ SMART interface for SMART sensor with daylight control Functions _ Intelligent Temperature Guard (overtemperature protection) _ Intelligent Voltage Guard (overvoltage indication and Undervoltage shutdown) _ Optimum filament heating in any dimmer setting _ Disconnection of filament heating from a dimming level of approx. 90 % for maximum energy efficiency (SMART-Heating concept) _ corridor function with ambient light control _ Automatically triggered emergency lighting value in DC mode, 15 % _ For emergency lighting systems as per EN 50172 _ Automatic start after replacement of defective lamps _ Automatic shutdown if the lamp is faulty 1 According to the EU directives on ecodesign requirements (EC) No. 245/2009 and (EC) No. 347/2010. Technical data: Mains voltage range 220 – 240 V AC voltage range of 198 – 264 V DC voltage range 176 – 280 V (lamp start ≥ 198 V DC) Mains frequency 0 / 50 / 60 Hz Overvoltage protection 320 V AC, 1 h Typ. power input on stand-by
