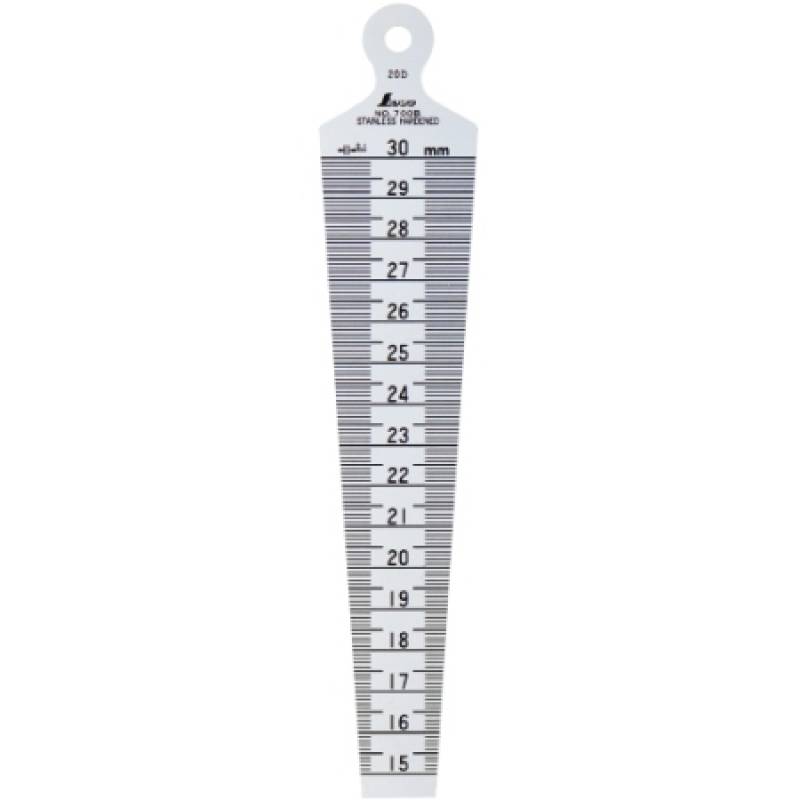

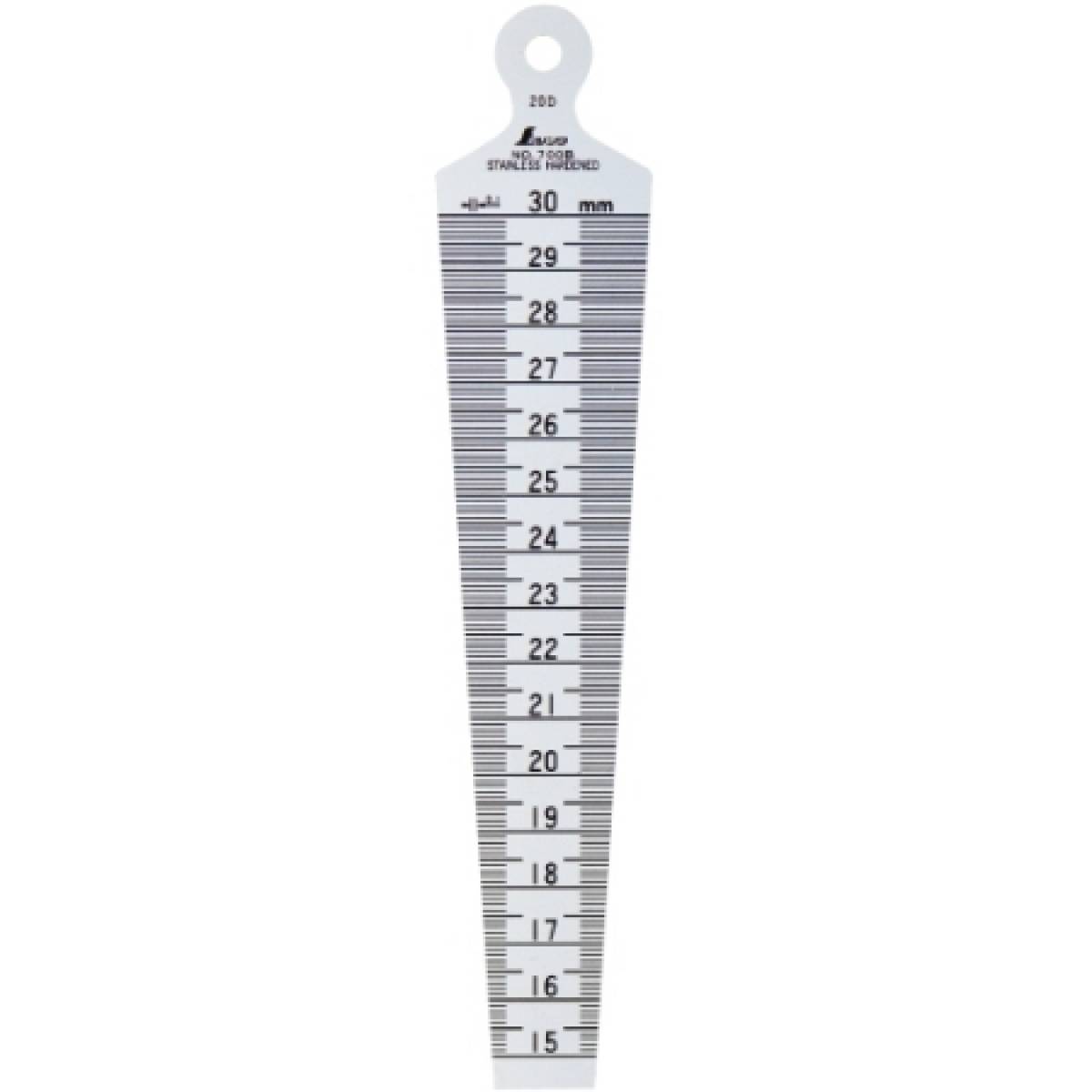

Shinwa Taper Gauge No.700B

Measurements can be made simply by inserting them into gaps, tubes and holes. Gauge used to measure clearance, inner diameter and hole diameter * Do not use in places where there is a risk of contact with electricity. [Products with proofs cannot be canceled after ordering] * Products with proofs and traceability diagrams can only be ordered on the web. * Applicable documents are included only for products that include (with JCSS calibration), (with general calibration / traceability system diagram) and (with calibration / traceability system diagram) in the part number. Dimensions (mm) – 154×31×1.2 Measuring Range (mm) – 15～30 Mass (g) – 29 Hardness – HV400 or more Material – Stainless steel Scale Accuracy (mm) – ± 0.05 with respect to the measurement range
