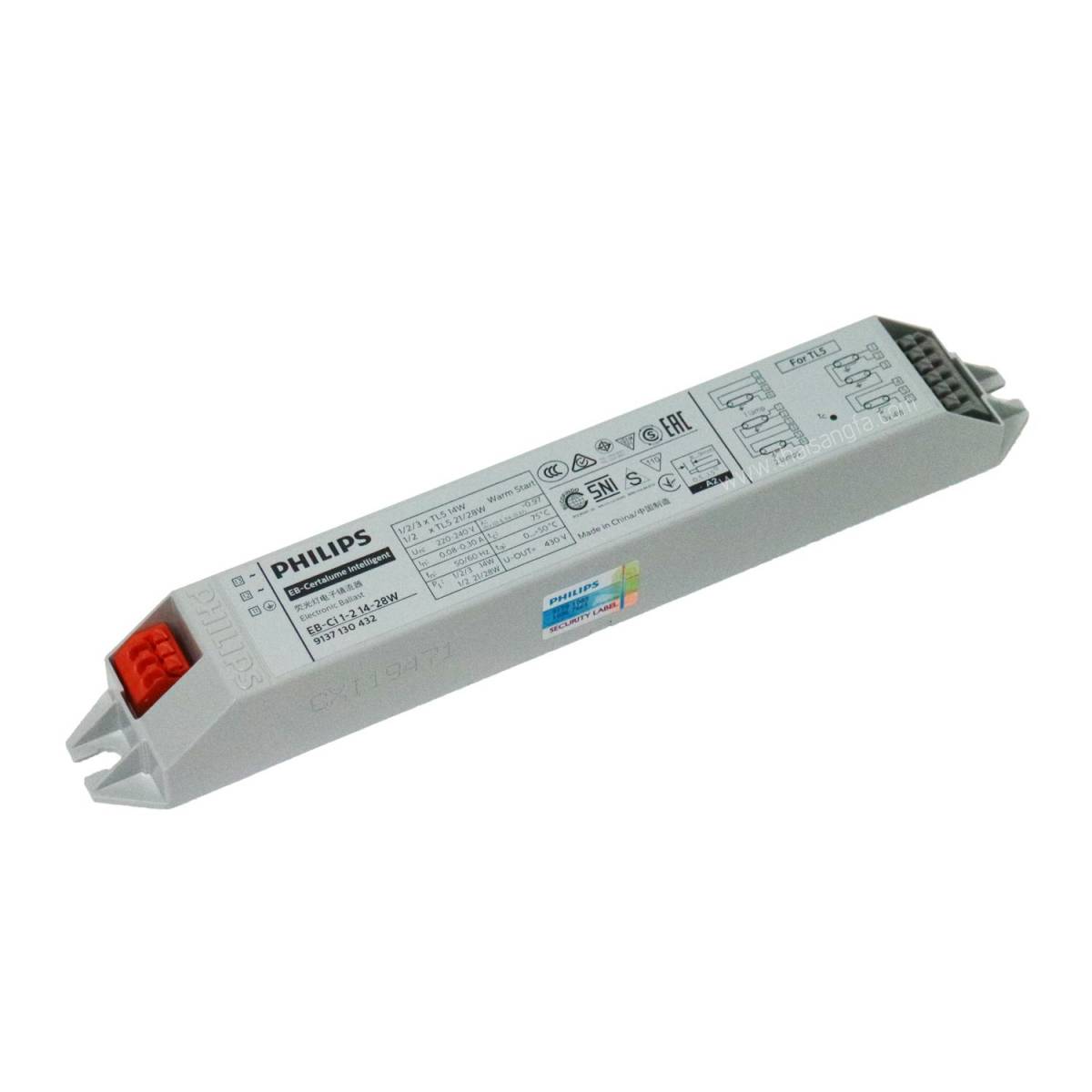

Philips Electronic Ballast EB-Ci 1-2 14-28W (TL5)

General Information Lamp type TL5 Number of lamps 1-3 piece/unit Suitable for outdoor use No Number of products on MCB (16 A type B) (max.) 30 Automatic restart Yes Operating and Electrical Input Voltage 220-240 V Input frequency 50 or 60 Hz Operating frequency (nom.) 42-60 kHz Ignition method Warm Start Crest factor (max.) 1.7 Ignition time (nom.) 2.0 s Mains voltage performance (AC) -10%-+10% Mains voltage safety (AC) 198…264V Earth leakage current (max.) 0.5 mA Inrush current width 0.224 ms Ballast factor (nom.) 1 Power factor (max.) 0.98 Power factor (min.) 0.90 Input power (max.) 60.1 W Input power (min.) 16.6 W Power losses (max.) 4.8 W Power losses (nom.) 2.1 W Inrush current peak (max.) 17 A Rated lamp power 14-28 W Wiring Connector type input terminals Insert Cable capacity output wires mutual (max.) 150 pF Connector type output terminals Insert Cable length hot-wiring 0.75 m Wire strip length 7.5-8.5 mm Input terminal cross section 0.50-1.50 mm2 Output terminal cross section 0.50-1.50 mm2 Cable capacity output wires to earth (max.) 150 pF Connector type Insert System characteristics Rated lamp power on TL5 14-28 W System power on TL5 16.6-60.1 W Lamp power on TL5 14.5-27.8 W Power loss on TL5 2.1-4.8 W Temperature T-ambient (max.) 50 °C T case lifetime (max.) 75 °C T-Case maximum (max.) 75 °C T-Ignition (max.) 50 °C T-Ignition (min.) -10 °C Mechanical and Housing Housing material Plastic Housing L210x30x26mm Emergency Operation Battery voltage lamp ignition 165-253 V Approval and Application Energy efficiency index A2 IP classification IP 20 [ Ingress Protection 20] EMI 9 kHz … 30 MHz EN55015 EMI 30 MHz … 1,000 MHz EN 55015 Environmental standard ISO 14001 Vibration standard IEC 60068-2-29 FB Bumps standard Not specified Approval marks CB Certificate CCC certificate TISI marking PSB certification RCM compliance SNI Certificate CS compliance IRAM compliance Temperature marking Yes Humming and noise level Product Data Full product code 694793913355000 Order product name EB-Ci 1-2 14-28W 220-240V 50/60 Hz EAN/UPC – product 6947939133550 Order code 913713043280 SAP numerator – quantity per pack 1 Numerator – packs per outer box 30 SAP material 913713043280 SAP net weight (piece) 0.080 kg
