Description

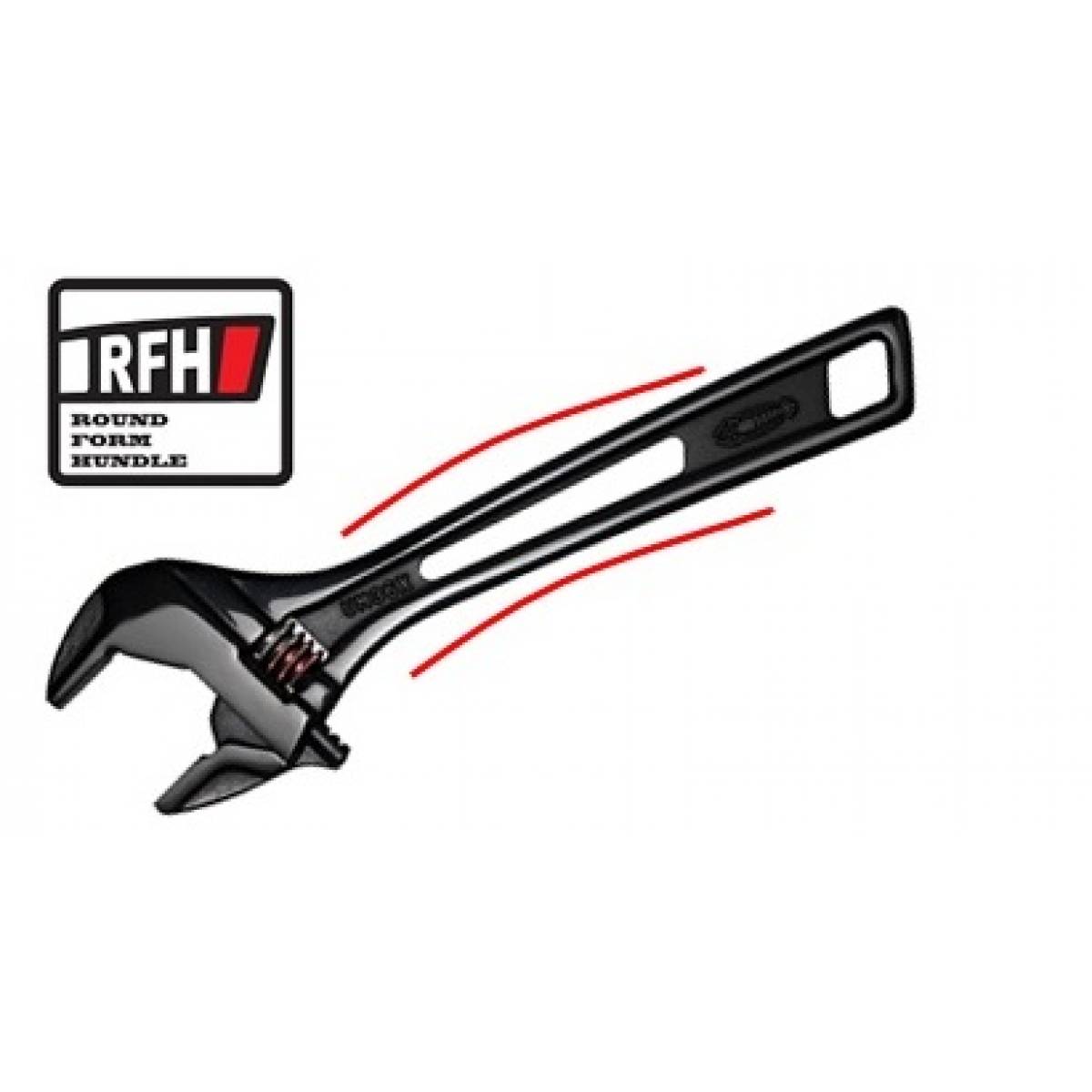

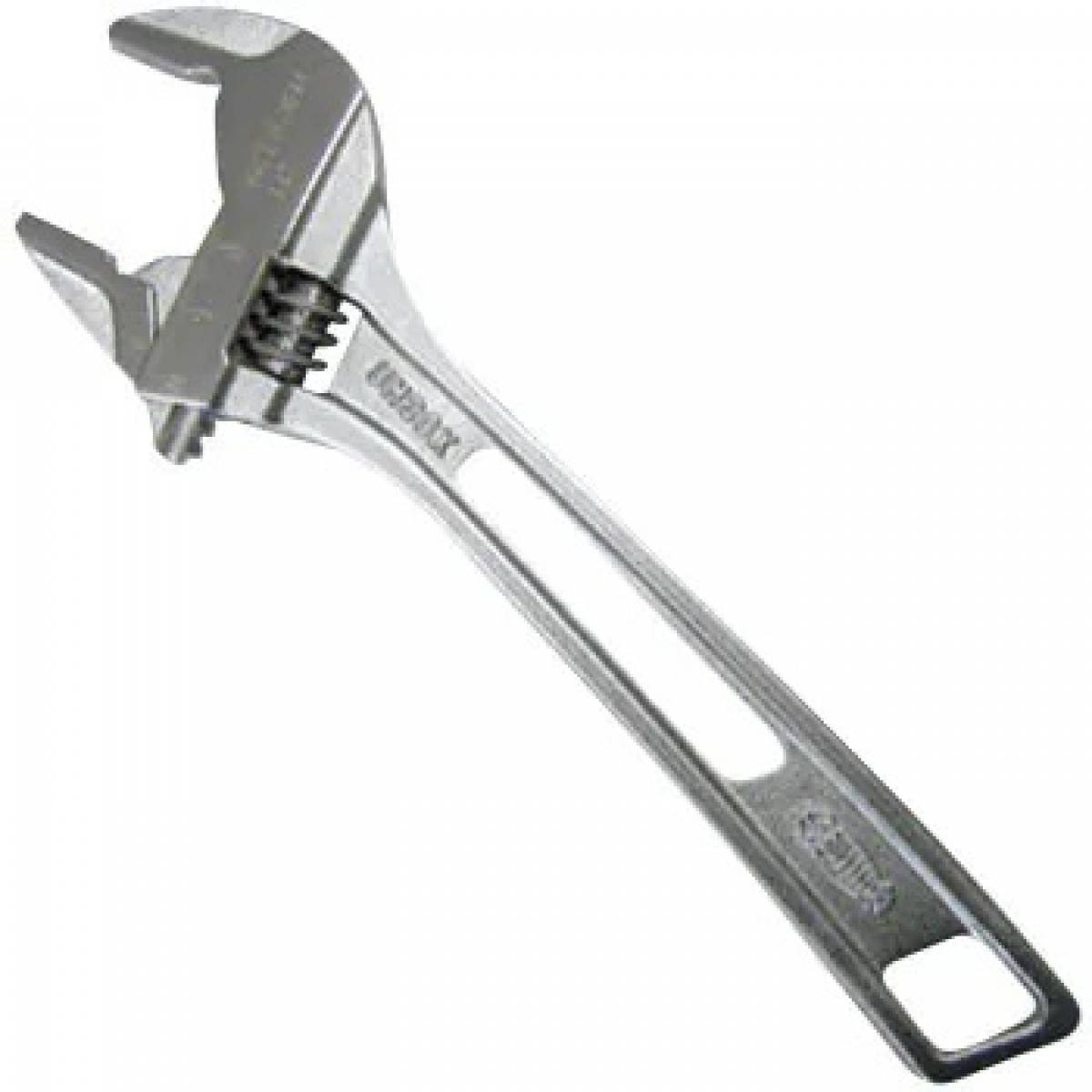

New design for support on three faces. Can easily apply force compared to a 2-face spanners or conventional adjustable wrenches, without crushing a nut/bolt heads. Model No. (Product) weight size1 size2 size3 Jaw Capacity Bolt, nut maximum dimension UM24XG 90g 150mm 5mm 10.0mm 6~24mm M16 UM30XG 170g 200mm 6mm 12.0mm 8~30mm M20 UM36XG 300g 250mm 7mm 14.0mm 8~36mm M24 UM49X 530g 300mm 8mm 17.0mm 12~49mm M30 ?The newly shaped (round) handle easily fits the hand. 【 Functions 】 ①Advanced function Ⅰ: G-LESS (loose grip prevention) mechanism (PAT.) ?The PUM-X was the first among adjustable angle wrenches to adopt the G-LESS mechanism for resisting looseness in the vertical direction. ※ (Except for UM49XDS) ②Advanced function Ⅱ :X-DRIVE ?Thanks to the stress relief structure, the new “X-DRIVE” disperses more stress applied to the edges than the conventional tools. Thus, the X-DRIVE can easily apply torque, enabling stable tightening and loosing work, without collapsing the edges. ③Advanced function Ⅳ :RFH (Round form handle)
Additional information
| Model | , , , |
|---|
