Fluke 325 True RMS Clamp Meter

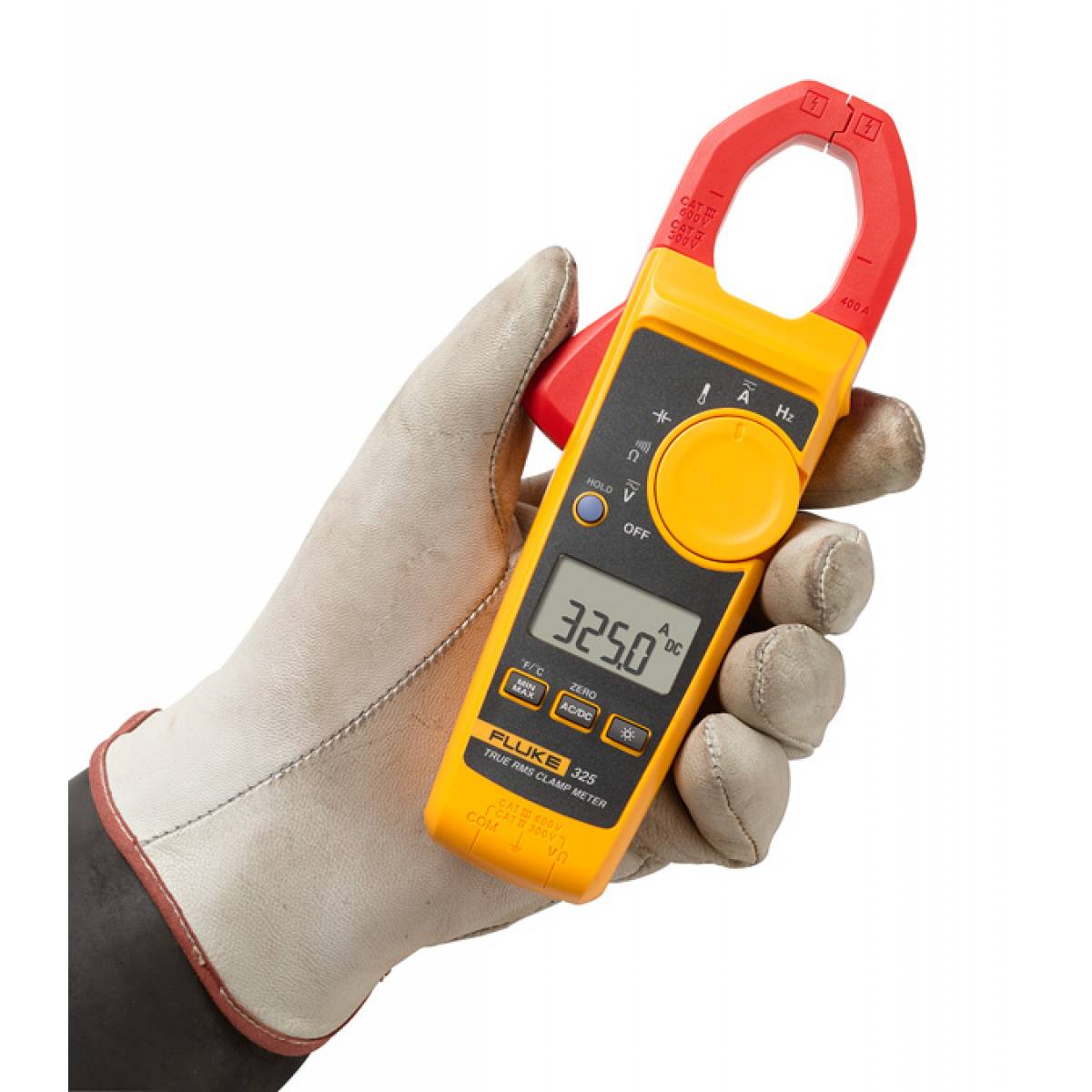

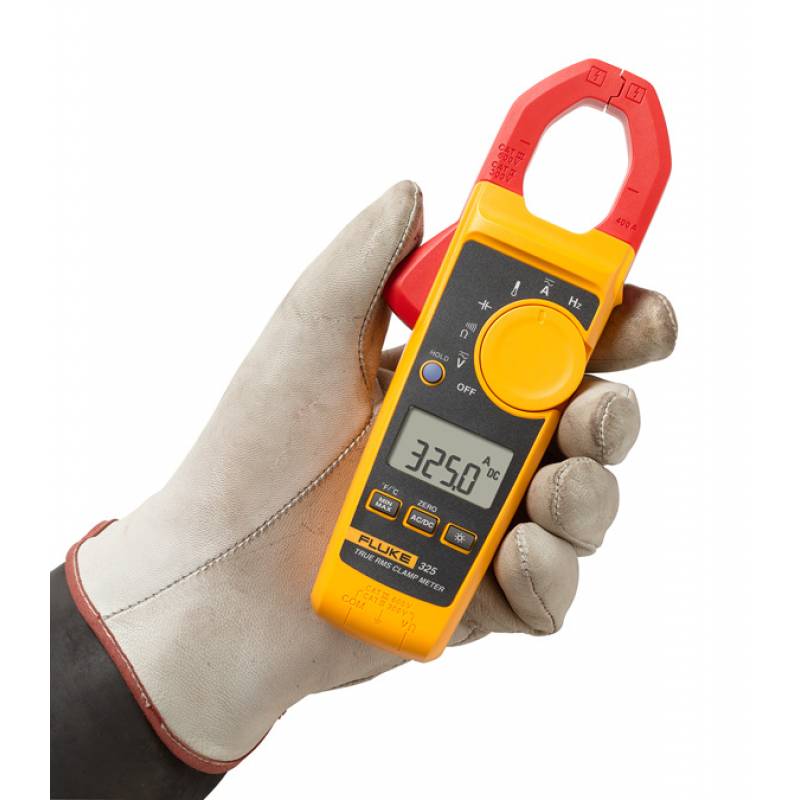

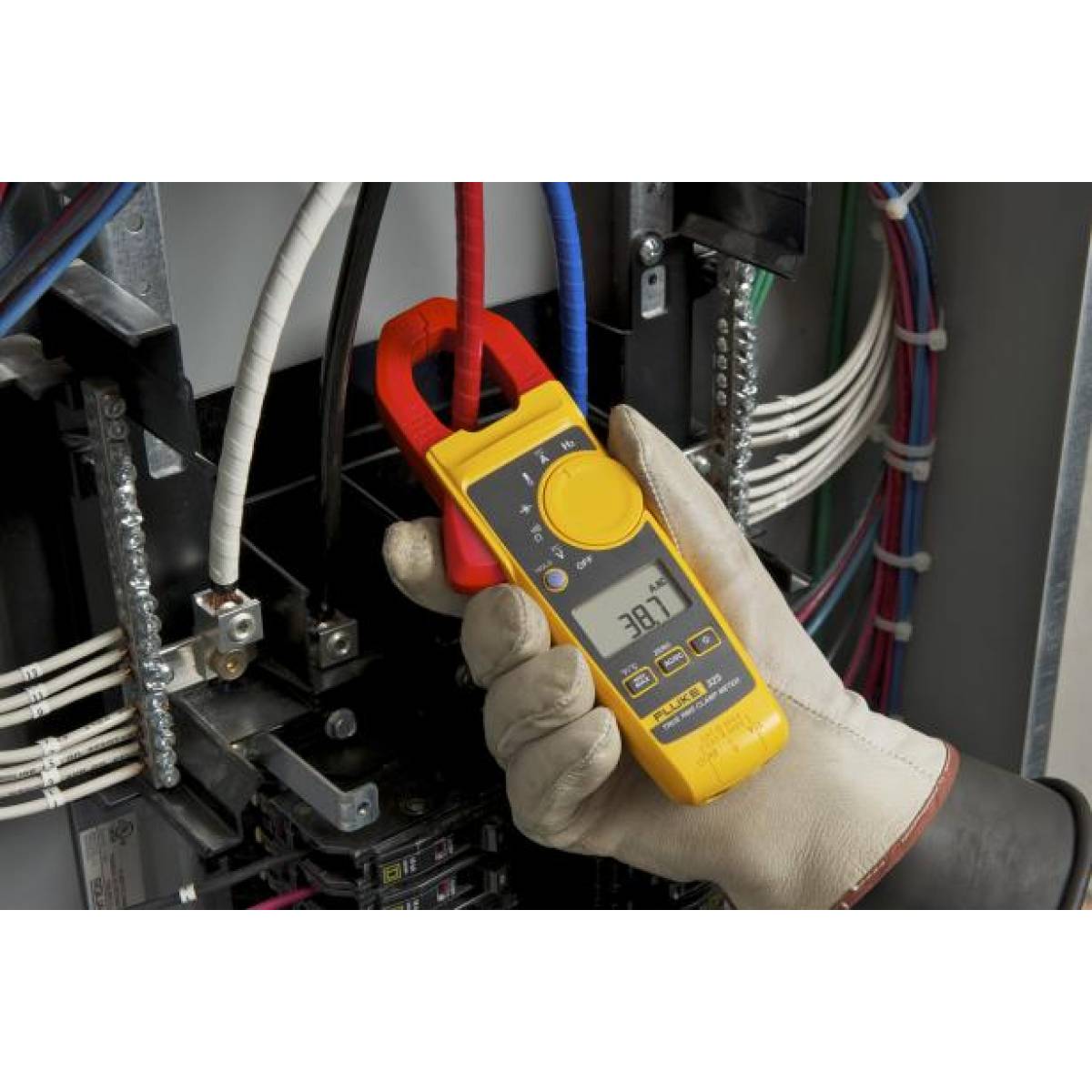

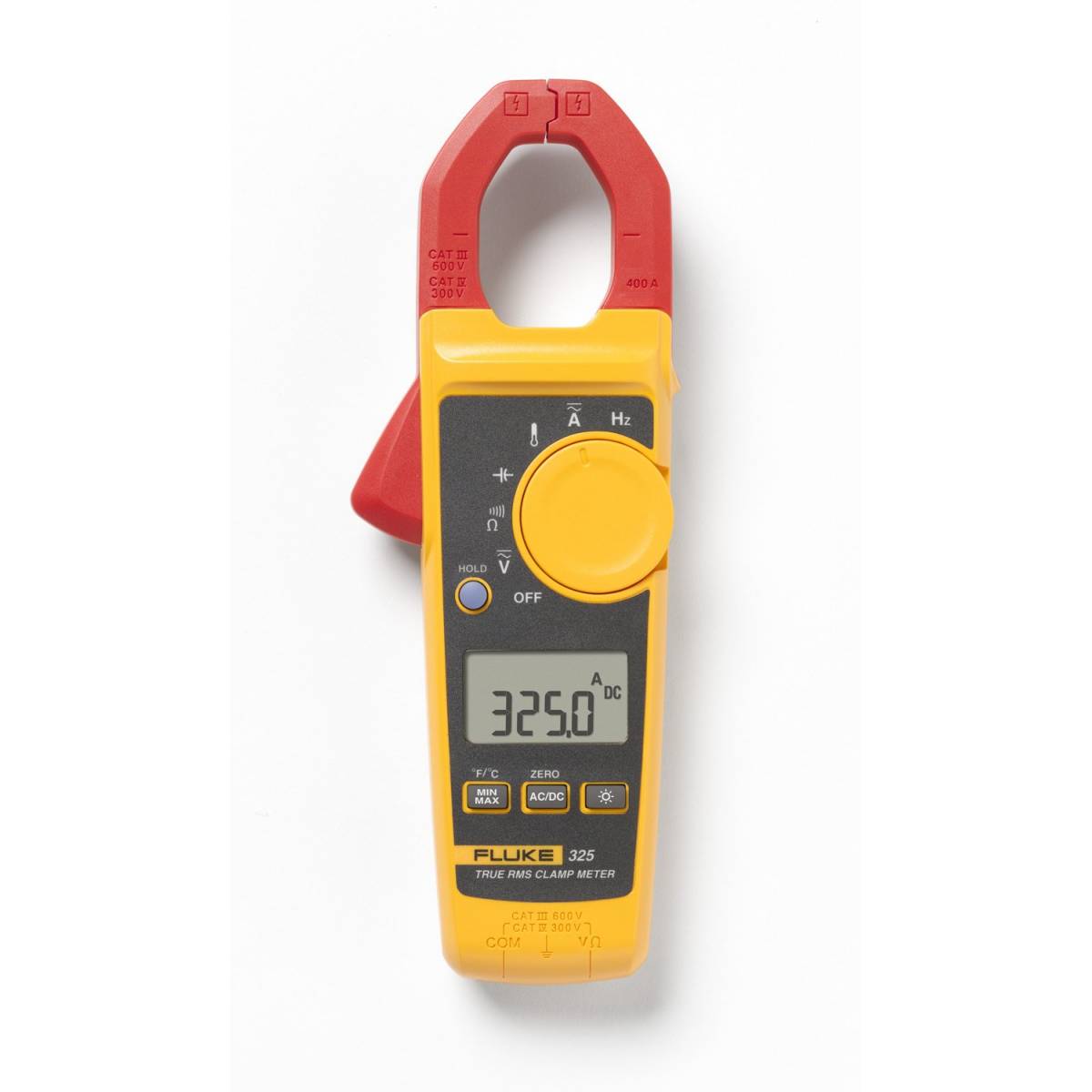

Product overview: Fluke 325 True RMS Clamp Meter Troubleshoot problems safely and accurately The Fluke 325 True-rms Clamp Meter is a reliable, versatile troubleshooting tool for commercial and residential electricians. Featuring a slim design for easy transport and use, and a large display for efficient troubleshooting. In addition to true-rms AC current and voltage on non-linear loads, the 325 measures: DC current | DC voltage | Temperature | Frequency | You’ll carry fewer tools in your bag and get more work done. Covers most problems you see day-in, day-out The 325 gives you a strong combination of measurement functions, in a tool that is reliable, easy-to-use and affordable. This clamp meter offers True-rms AC voltage and current measurements on non-linear signals. Paired with the CAT III 600 V, CAT IV 300 V safety rating the clamp meter can also measure: Measures AC/DC current up to 400 A through jaw | AC/DC voltage to 600 V using test leads | Measures frequency from 5 Hz to 500 Hz; resistance to 40 k? | Measures temperature from -10 °C to 400 °C with included K-type thermocouple | Min/Max function records important values | Specifications: Fluke 325 True RMS Clamp Meter Specifications AC current Range 40.00 A / 400.0 A Accuracy 2% ± 5 digits (45 Hz to 65 Hz) 2.5% ± 5 digits (65 Hz to 400 Hz) DC current Range 40.00 A / 400.0 A Accuracy 2% ± 5 digits AC voltage Range 600.0 V Accuracy 1.5% ± 5 digits DC voltage Range 600.0 V Accuracy 1.0% ± 5 digits Resistance Range 400.0 ? / 4000 ? / 40.00 k? Accuracy 1.0% ± 5 digits Continuity ≤ 30 ? Capacitance 0 to 100.0 μF / 100μF to 1000 μF Frequency 5.0 Hz to 500.0 Hz AC response True-RMS Backlight Yes Data hold Yes Contact temperature -10.0°C to 400.0°C (14.0°F to 752.0°F) Min/Max Yes Size H x W x D (mm) 207 x 75 x 34 Max wire diameter 30 mm (600 MCM) Weight 283 g Category rating CAT III 600 V CAT IV 300 V
