Denko Emergency Exit Sign

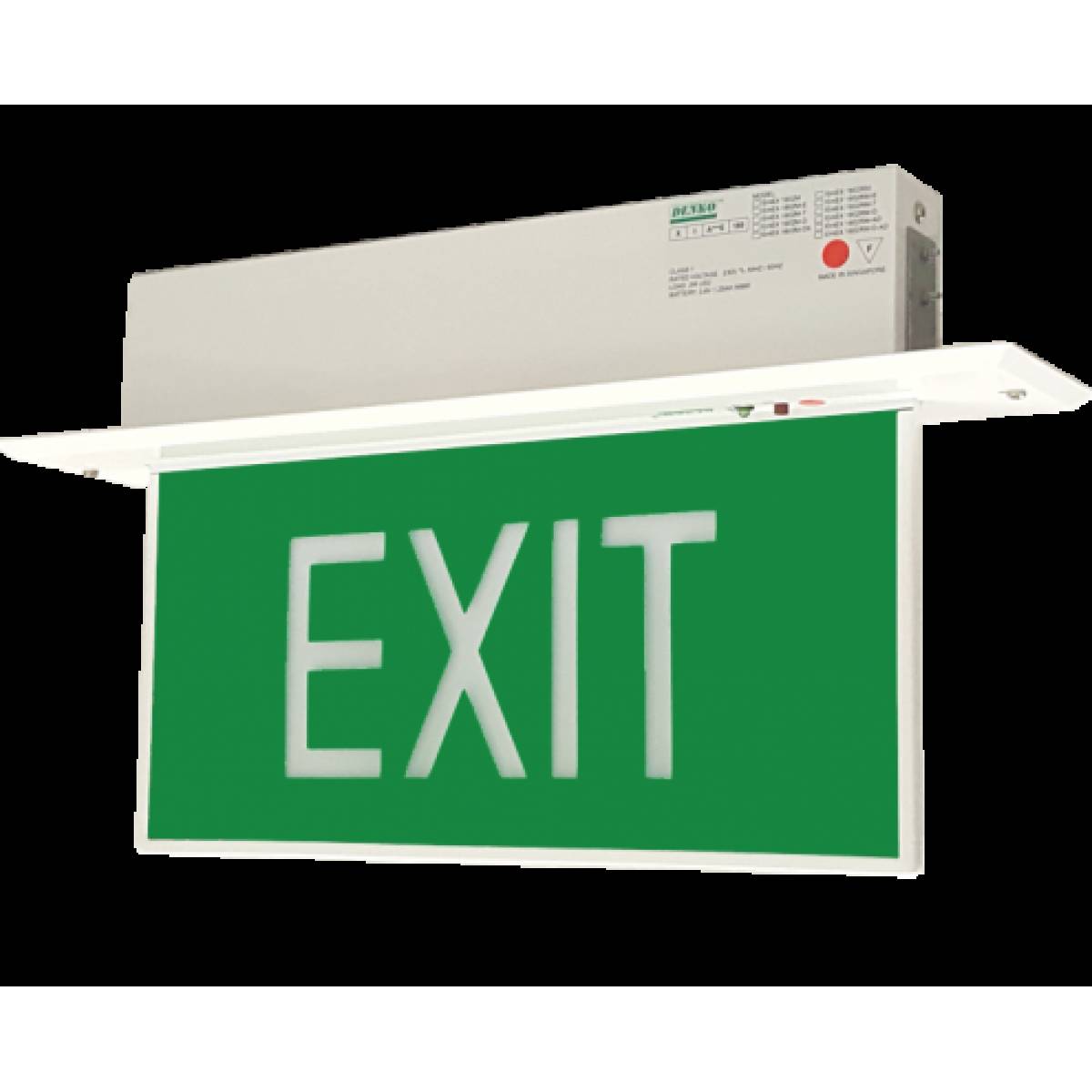

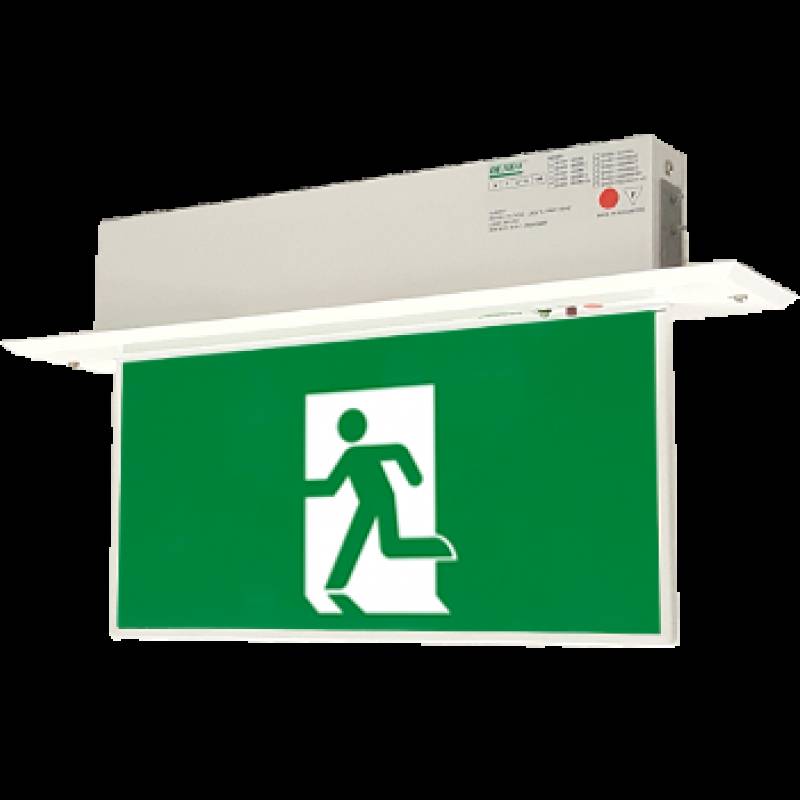

Features and Application New slim housing recessed LED emergency exit signs with option for ‘Exit’ or ‘Running Man’ signage. ? Samsung LED lamps provide high efficiency, durability and low energy consumption. ? LED lamps provide high efficiency, durability and low energy consumption. ? Designed for easy installation and maintenance. Technical Specifications Mode of Operation Maintained Lamp Samsung 2W High flux white LED Operating Temperature ta 0°C ~ 50°C Mains Supply 230V AC 50Hz/60Hz Power Consumption Battery High temperature NICD battery Charger Fully automatic Charging Monitor ? 5mm Green LED Recharge Period 24 hrs Testing Facility Test-switch for independent testing Emergency Duration 3 hrs Safety Feature Low-voltage cut-off to prevent over-discharge of battery Construction Electro-galvanised steel casing with epoxy powder coating Weight (Nett/Gross) 1.5 kg / 1.7 kg Compliance SS 563-1:2010 SS 563-2:2010/A1:2013 SS IEC 60598-2-22:2016 Installation Recessed mounting Cable Entry 3 x 20mm ? knockout hole IP Rating IP 20 Legend White text/graphical symbol over ISO green background Warranty 1 year Click the ” Download ” icon for the Catalogue
