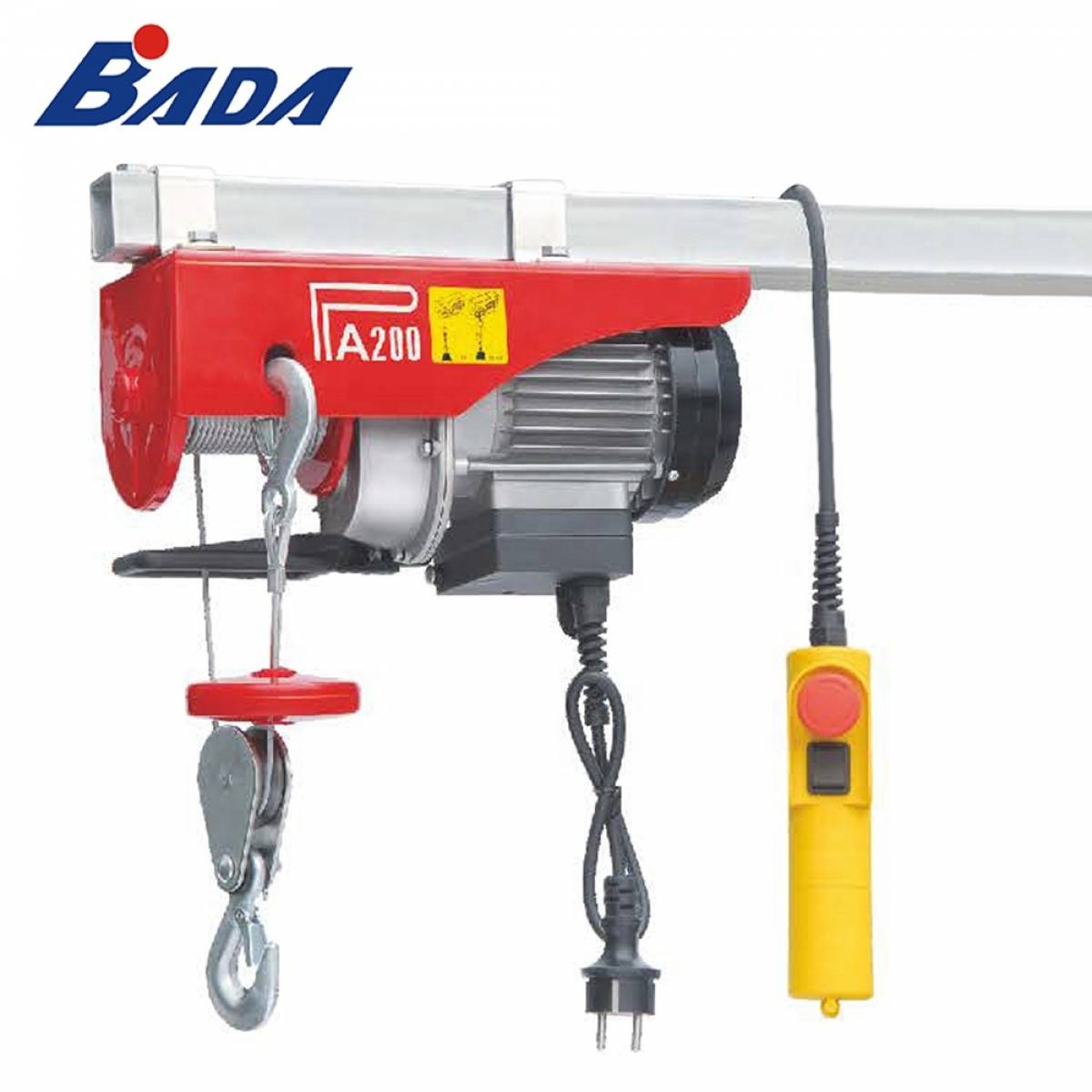

Bada Electric Hoist 100/200kgs PA200A

Application ? The emergency stop switch ? Upper limit function ? Thermal protection terminal ? Protection class IP54 ? Insulation class B ? Group of mechanisms M1 Type PA200A Work Duty S3-25%-10min Rated Volt 220/230V ~ 50Hz Rated Current 2.0A Input Power 450W Lifting Weight 100kg(Single-line), 200kg(Double-line) Lifting Height 12m(Single-line), 6m(Double-line) Lifting Speed 10m/min(Single-line), 5 m/min(Double-line) Diameter of wire rope 3.0mm Tensile strength of wire rope >= 1870N/mm 2
